Standards and Protocols
Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
N300
2.4 GHz: 300 Mbps (802.11n)
WiFi Range
2 Bedroom Houses
3× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Kapasitesi
Legacy
Working Modes
Router Mode
Access Point Mode
Range Extender Mode
WISP Mode
GÜVENLİK
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor
Single-Core CPU

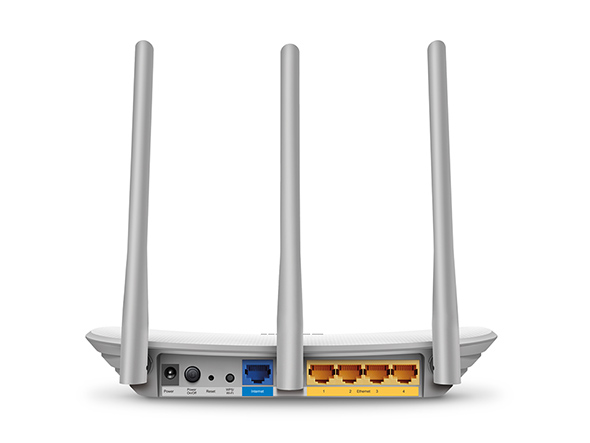

Ethernet Ports
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Butonlar
WPS Button
Reset Button
Power
9 V ⎓ 0.6 A
SOFTWARE
Protocols
IPv4
IPv6
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
NAT Forwarding
Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
DHCP
Address Reservation
DHCP Client List
Server
DDNS
NO-IP
DynDNS
Management Features
Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power
CE:
<20dBm(2.4GHz)
FCC:
<30dBm
WiFi Reception Sensitivity
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -93dBm@8% PER
6M: -95dBm@10% PER
1M: -98dBm@8% PER
PHYSICAL
Dimensions (W×D×H)
9.1 × 5.7 × 1.4 in
(230 × 144 × 35 mm)
Package Content

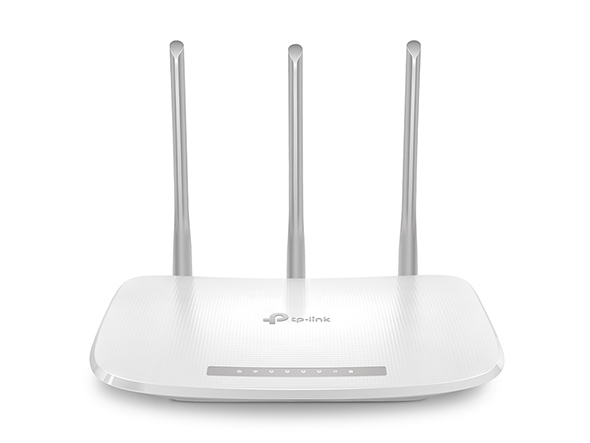

Wi-Fi Router TL-WR845N
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
