Açıklama
DONANIM ÖZELLİKLERİ
Arabirim
4 10/100/1000Mbps RJ45 Ports
1 RJ11 Port
2 USB 2.0 Ports
Buton
1 Power On/Off Button
1 WPS Button
1 Wi-Fi On/Off Switch
1 RESET Button
Harici Güç Kaynağı
12VDC/1.5A
IEEE Standartları
IEEE 802.3, 802.3u, 802.3ab
VDSL2 Standartları
ITU-T G.993.2
ITU-T G.998.4 (G.INP）
ADSL Standartları
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1
ADSL2 Standartları
ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standartları
ITU-T G.992.5
Boyutlar ( W X D X H )
9.6*6.4*1.3 in.(243 x 160.6 x 32.5mm)
Anten
Three 5GHz 5dBi detachable antennas (RP-SMA)
Two 2.4GHz 3.5dBi internal antennas
KABLOSUZ ÖZELLİKLERİ
Kablosuz Standartlar
IEEE 802.11a,802.11b, 802.11g, 802.11n
Frekans
2.4GHz and 5GHz
Kablosuz Güvenlik
Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering
İletim Gücü
<20dBm(EIRP)
YAZILIM ÖZELLİKLERİ
Quality of Service
WMM, Bandwidth Control (IP QoS)
Gelişmiş Özellikler
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS
Güvenlik
NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering
IPv6
IPv6 and IPv4 dual stack
Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Yönetim
Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools
Port Yönlendirme
Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through
PPTP, L2TP, IPSec Pass-through
ATM/PPP Protokolleri
ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC – Up to 8 PVCs
USB Paylaşım
Storage Sharing
FTP Server
Media Server
Print Server
IGMP
IGMP snooping V1/V2/V3
IGMP Multicast
IPSec VPN
10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
DİĞERLERİ
Sertifika
CE, FCC, RoHS
Paket İçeriği

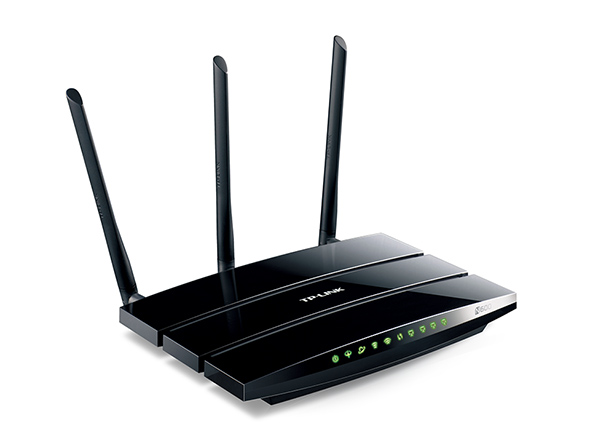

TD-W9980
External Splitter
RJ-11 Telephone Line
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter
Sistem Gereksinimleri
Windows 10/8/7/Vista/XP or Mac OS or Linux-based operating system
Ortam
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
